Mô tả sản phẩm:

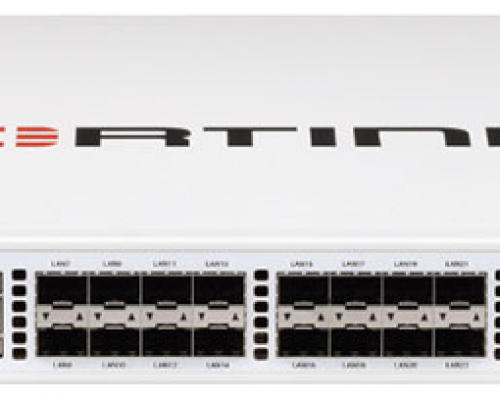

| Datasheet FortiGate FG-700G | |
| Category | Details |
| Hardware Accelerated 25GE SFP28 / 10GE SFP+ Slots | 4 |
| Hardware Accelerated 10GE SFP+ / GE SFP Slots | 4 |
| Hardware Accelerated GE SFP Slots | 16 |
| Hardware Accelerated GE RJ45 Slots | 8 |
| 2.5GE / GE HA Port | 1 |
| GE Management Port | 1 |
| USB Ports (Client / Server) | 2 |
| Console Port | 1 |
| Trusted Platform Module (TPM) | Yes |
| Bluetooth Low Energy (BLE) | No |
| Signed Firmware Hardware Switch | Yes |
| FortiSentry | Yes |
| Included Transceivers | 2 x SFP SX |
| IPS Throughput | 38 Gbps |
| NGFW Throughput | 29 Gbps |
| Threat Protection Throughput | 26 Gbps |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 164 / 163 / 145 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 164 / 163 / 145 Gbps |
| Firewall Latency (64 byte, UDP) | 3.87 μs |
| Firewall Throughput (Packets Per Second) | 217.5 Mpps |
| Concurrent Sessions (TCP) | 16 Million |
| New Sessions per Second (TCP) | 700000 |
| Firewall Policies | 10000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 50000 |
| SSL-VPN Throughput | 8 Gbps |
| Concurrent SSL-VPN Users (Tunnel Mode) | 10000 |
| SSL Inspection Throughput (IPS, avg HTTPS) | 14 Gbps |
| SSL Inspection CPS (IPS, avg HTTPS) | 13000 |
| SSL Inspection Concurrent Sessions (IPS, avg HTTPS) | 1.6 Million |
| Application Control Throughput (HTTP 64K) | 50 Gbps |
| CAPWAP Throughput (HTTP 64K) | 133 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 50 |
| Maximum FortiSwitch Supported | 96 |
| Maximum FortiAPs (Total / Tunnel) | 1024 / 512 |
| Maximum FortiTokens | 5000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Height x Width x Length (inches) | 1.75 x 17.0 x 13.5 |
| Height x Width x Length (mm) | 44.45 x 432 x 342 |
| Weight | 7.72 lbs (3.5 kg) |
| Form Factor | Rack Mount, 1RU |
| AC Power Supply | 100-240VAC, 50/60 Hz |
| AC Current (Maximum) | 6A @ 100VAC |
| Power Consumption (Average / Maximum) | FG-700G: 230W / 283W FG-701G: 240W / 295W |
| Heat Dissipation | FG-700G: 965 BTU/h FG-701G: 1006 BTU/h |
| Redundant Power Supplies | Yes (dual non-swappable AC PSU for 1+1 redundancy) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -35°C to 70°C (-31°F to 158°F) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 59 dBA |
| Forced Airflow | Side and front to back |
| Operating Altitude | Up to 10000 ft (3,048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
